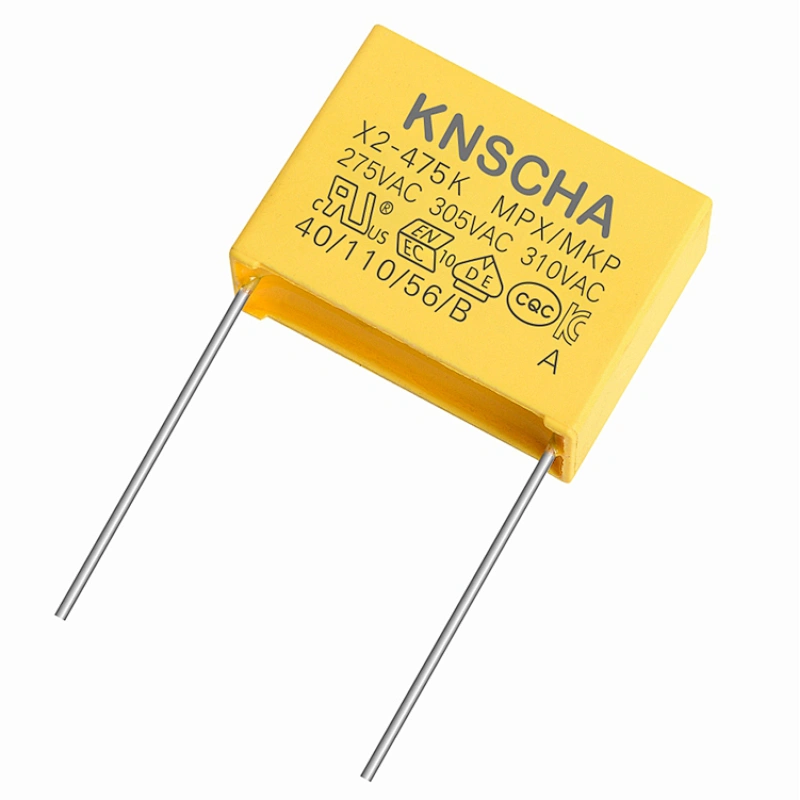

KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC

KNSCHA X2 Film capacitor RC Voltage Reducing Safety 564K 275VAC 305VAC 310VAC

Model NO.
X2-A 564K 310VAC
Price:
US $ 0.01-0.03 / pieces
Delivery:
EXW/FOB/CIF/DDP
Minimum order quantity:
2000 pieces
Supply Ability:
30000000 pieces / Month
Country of Origin:
Dongguan, China
Stock Time:
7-10 Days
Quantity:
  • Brand Name:KNSCHA
  • Capacitance:0.1-4.7UF
  • Capacitance tolerance:±10%(K)
  • Rated Voltage:275VAC, 305VAC, 310VAC
  • Material:Metallized Polypropylene Film
  • Pitch:10mm, 15mm, 22.5mm, 27.5mm
  • Certificate:UL, CUL, VDE, ENEC, KC, CQC
  • Working Temperature:-40℃~+110℃
  • Application:RC Voltage-reducing circuit, power monitor, LED moudule etc
  • Package Type:Through Hole
  • Operating Temperature:-40℃~+110℃

KNSCHA Brand 0.27UF 310VAC X2 Film capacitor, RC Voltage Reducing Safety MPP MKP X2 Film Capacitors

Product Description

Technical Data:

Class
X2
Rated Voltages
275VAC, 305VAC, 310VAC
Climate category
40 / 110 /56
Capacitances range
0.001 uF ~ 4.7 uF.
Flammability rating
B
Cap. tolerances
± 10% (K)
Working temperature
-40°C ~ +110°C
Withstand voltage
4.3UR(Vdc)/(60S)
Dissipation factor
≤ 0.1% (1KHz, 20℃)
2120Vac(60S)
Insulation Resistance
≥15000 mΩ; CR≤ 0.33 uF,
≥5000s; CR > 0.33 uF, 20℃, 100V, 60S
Humidity test
temperature: 85 ±2°C, humidity: 85 ±2RH, Voltage: 240Vac/50HZ, Time:1000H,C/C≤10%, DF≤ 0.5%(1KHz) IR≥% initial value
Certifications
UL, CUL, ENEC, VDE, KC, CQC
Applications
Widely used in RC voltage-reducing circuit
Product Overviews

  1. Metallized polypropylene film capacitor
  2. Epoxy resin coated sealing
  3. Excellent flame retardant and moisture resistance
  4. Good self-healing performance
  5. Excellent temperature characteristics
  6. Able to withstand surge voltage strssing
  7. OEM and ODM accepted
  8. Certificate: UL, CUL, ENEC, VDE, KC, CQC
  • Rated Voltage Range: 275VAC, 305VAC, 310VAC
  • Capacitance Range: 0.01UF~4.7UF
  • Application: RC Voltage-reducing circuit, power monitor, LED moudule etc


Send Message

*
* clear input

Related Products

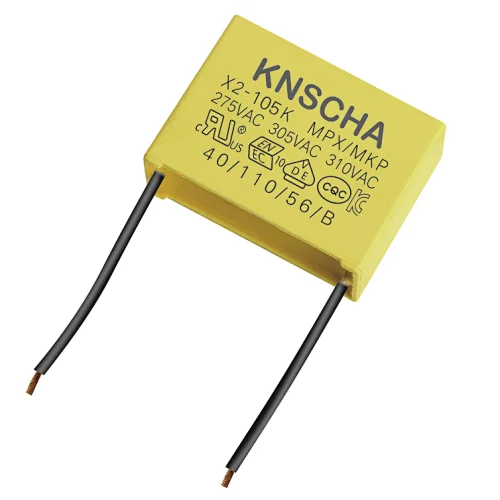

KNSCHA Metallized Polypropylene Film Capacitors X2 105K 305V 275V 310V
KNSCHA Metallized Polypropylene Film Capacitors X2 105K 305V 275V 310V
Model NO. X2 105K 310VAC
KNSCHA Metallized Polypropylene Film Capacitor X2 Safety Capacitors 202K 305V 310V
KNSCHA Metallized Polypropylene Film Capacitor X2 Safety Capacitors 202K 305V 310V
Model NO. X2 202K 305V
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 104K 275VAC 305VAC 310VAC
KNSCHA X2 Film capacitor RC Voltage Reducing Safety 104K 275VAC 305VAC 310VAC
Model NO. X2-A 104K 310VAC

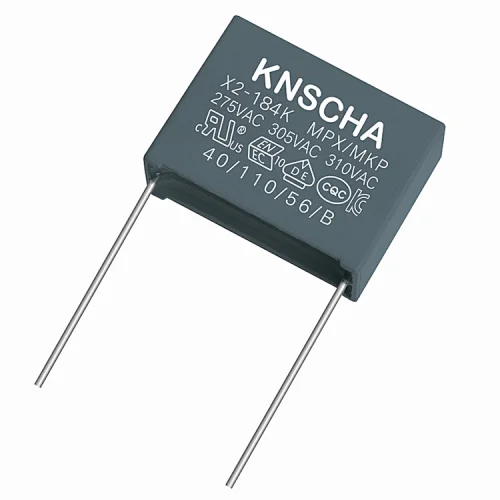

KNSCHA Metallized Polypropylene Film Capacitor X2 Safety Capacitors 184K 305V 310V
