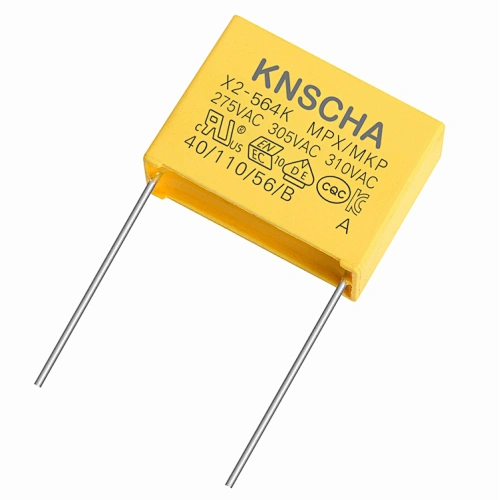

KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v
KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v

KNSCHA Metallized Polypropylene Film Capacitor X2 564k 275v

Model NO.
X2-THB 564K 310V
Price:
US $ 0.03-0.10 / pieces
Delivery:
EXW/FOB/CIF/DDP
Minimum order quantity:
2000 pieces
Supply Ability:
20000000 pieces / Month
Country of Origin:
Dongguan, China
Stock Time:
7-10 Days
Quantity:
  • Brand Name:KNSCHA
  • Dissipation Factor:less than 0.1%
  • Color:Grey
  • Capacitance Tolerance:±10%(K)
  • Features:Moisture-proof & Anti-interference
  • Samples:available
  • Security Certifications:CUL, KC, VDE, CQC, ENEC
  • Type:Polypropylene Film Capacitor
  • Package Type:Through Hole
  • Rated Voltage:275VAC 305VAC 310VAC
  • Operating Temperature:-40°C - +110°C
Product Description
X2 Metallized Polypropylene Film Interference Suppression Capacitor
Climate category
Climate category
Flame resistance level
B
Capacitance tolerance
±10% (K)
Working Temperature
-40℃ ~ +110℃
Rated Voltage
275VAC/305VAC/310VAC
Withstand voltage
4.3Ur (Vdc)/(60s)
Dissipation Factor
≤ 0.1% (1KHz, 20℃)
Damp heat test
Temperature: 85℃±2℃, Humidity: 85%±2%,
Voltage value: 240VAC, 50Hz
Test duration: 1000 Hours
Values after damp heat test
△C/C≤10%  △DF≤0.5% (1KHz) IR≥50% of initial value
Marking
Size
Tolerance
P
27.5mm
±0.5
W
31.5mm
±0.5
H
19.5mm
±0.5
T
11mm
±0.5
L
20mm
±2
d
0.8mm
±0.05

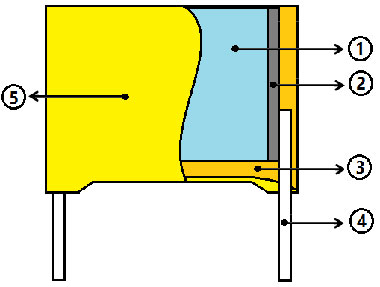

Capacitor Core
Metal Spraying Laye (Tin-zinc alloy)
Epoxy Resin
CP Wire Lead
PBT Plastic Shell
