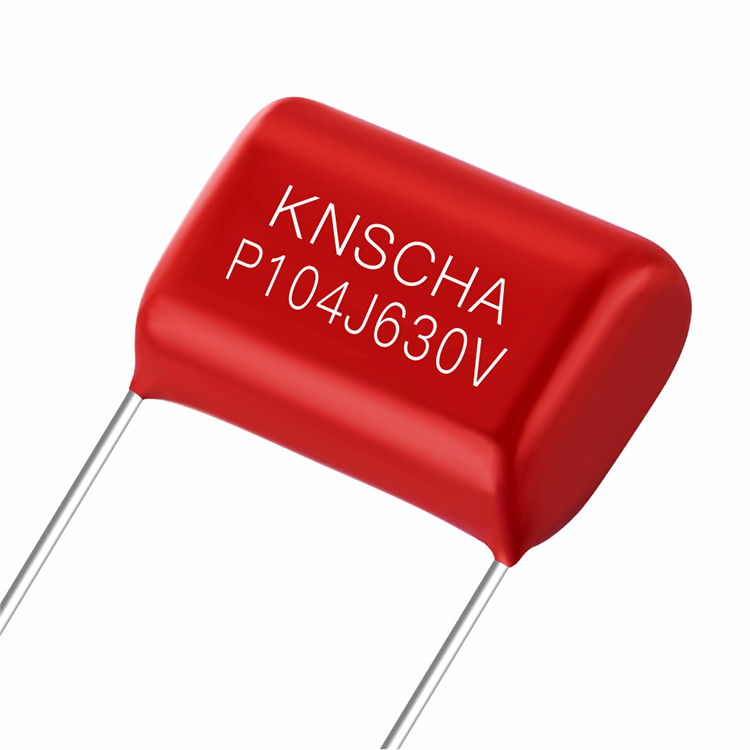

KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V
KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V

KNSCHA Metallized Polypropylene Film Capacitor MPP CBB22 224J 400V

Model NO.
MPP CBB22 224J 600V
Price:
US $ 0.01-0.03 / pieces
Delivery:
EXW/FOB/CIF/DDP
Minimum order quantity:
2000 pieces
Supply Ability:
30000000 pieces / Month
Country of Origin:
Dongguan, China
Stock Time:
7-10 Days
Quantity:

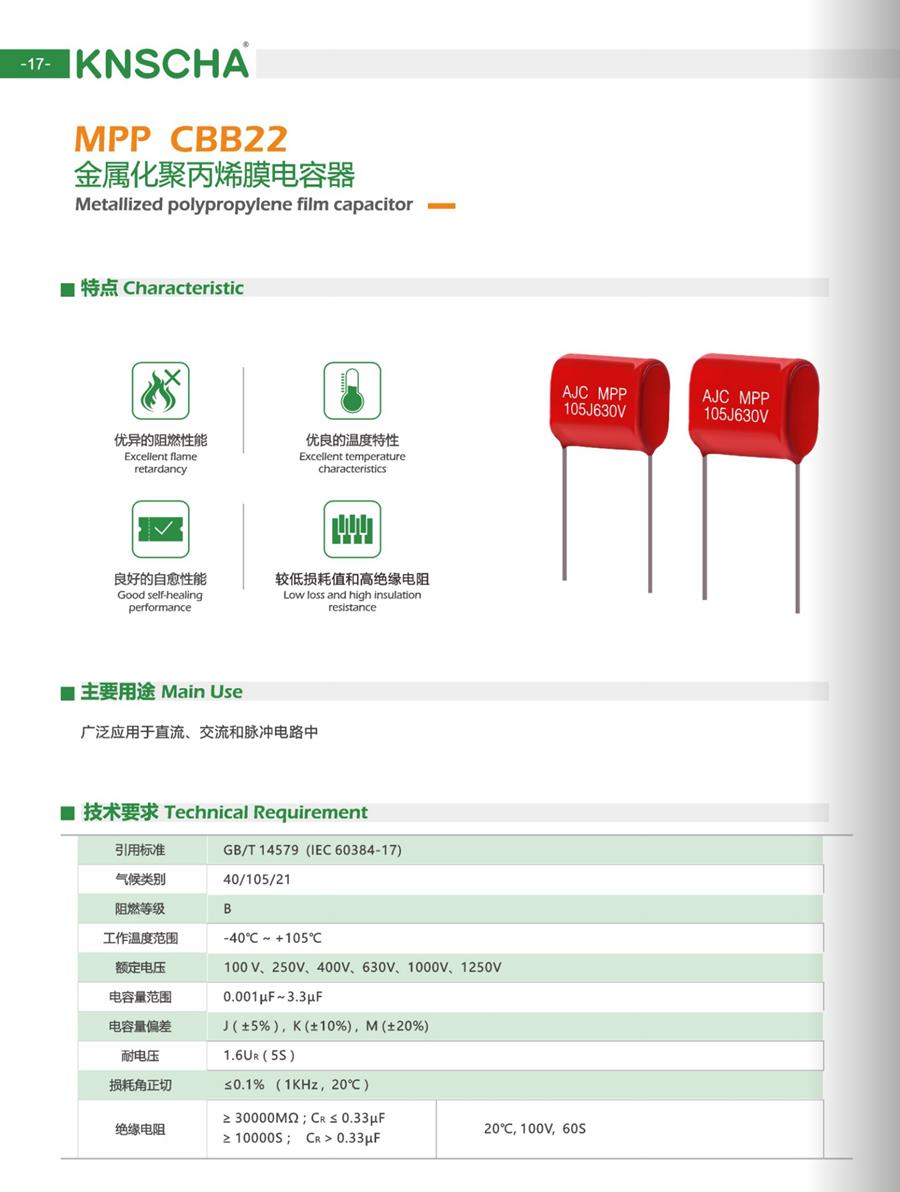

MPP/CBB22 Metallized Polypropylene Film Capacitor
Dipped Type
Climate Category
40/105/21
Flame Resistance Level
B
Working Temperature
-40℃~+105℃
Rated Voltage
VDC
Capacitance Range
uF
Capacitance Tolerance
±5% (J)
Withstand voltage
1.6UR (Vdc)/(5s)
Dissipation Factor
≤ 0.1% (1KHz, 20℃)

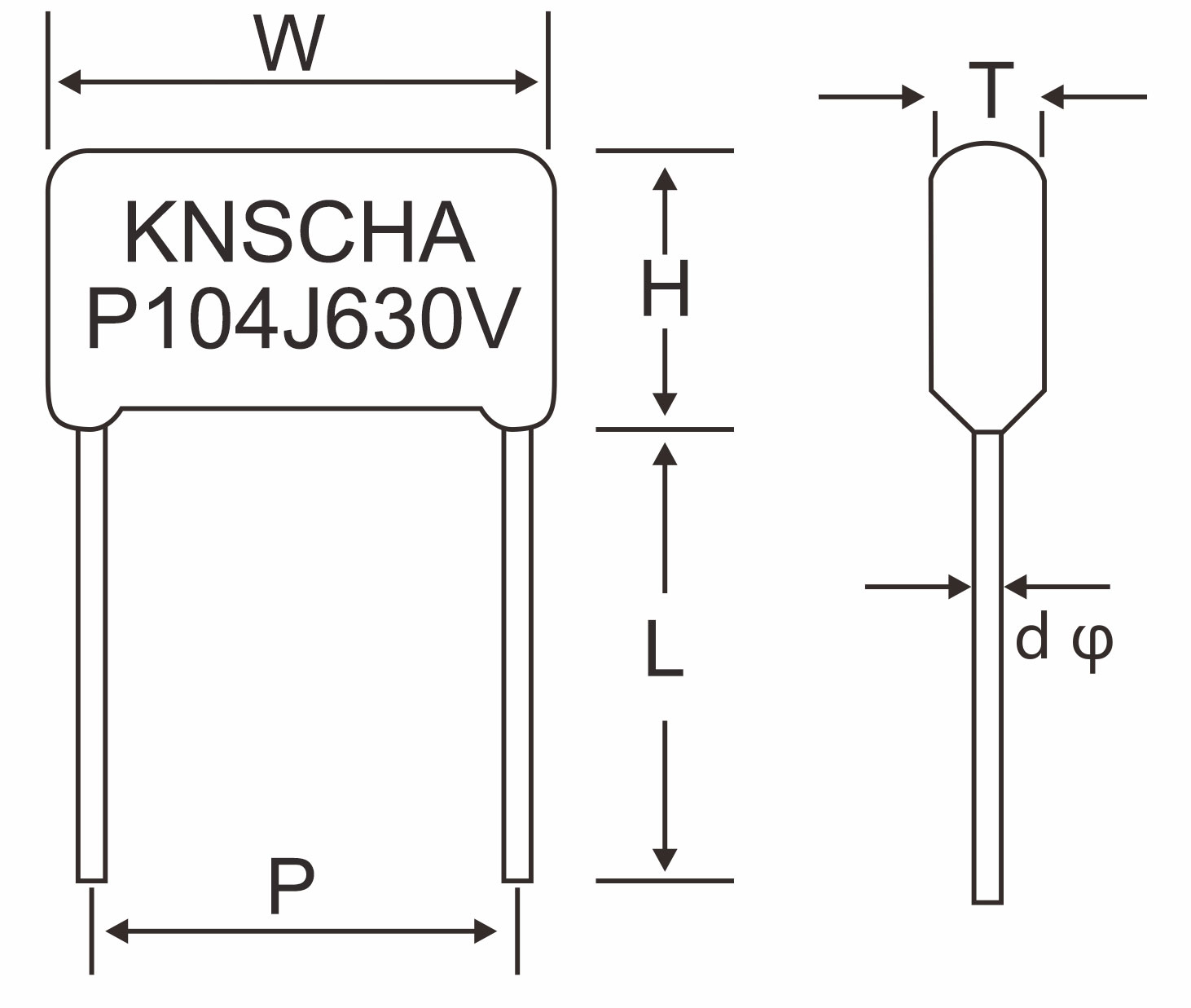

Marking
Size
Tolerance
P
15mm
±0.5mm
W
18mm
±0.5mm
H
12mm
±0.5mm
T
6mm
±0.5mm
L
22mm
±2mm
d
0.6mm
±0.05mm

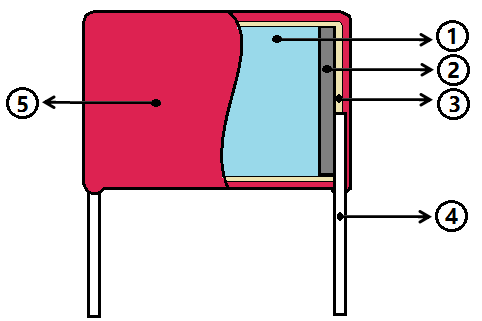

① Capacitor Core
② Metal Spraying Laye
(Tin-zinc alloy)
③ Epoxy Resin
④ CP Wire Lead
⑤ PBT Plastic Shell

Features:

1. Excellent self-healing ability 2. Excellent temperature characteristic ability 3. Excellent flame resistance ability 4. Lower DF value and high insulation resistance
