① Capacitor Core
② Metal Spraying Laye
(Tin-zinc alloy)
③ Epoxy Resin④ CP Wire Lead
⑤ PBT Plastic Shell

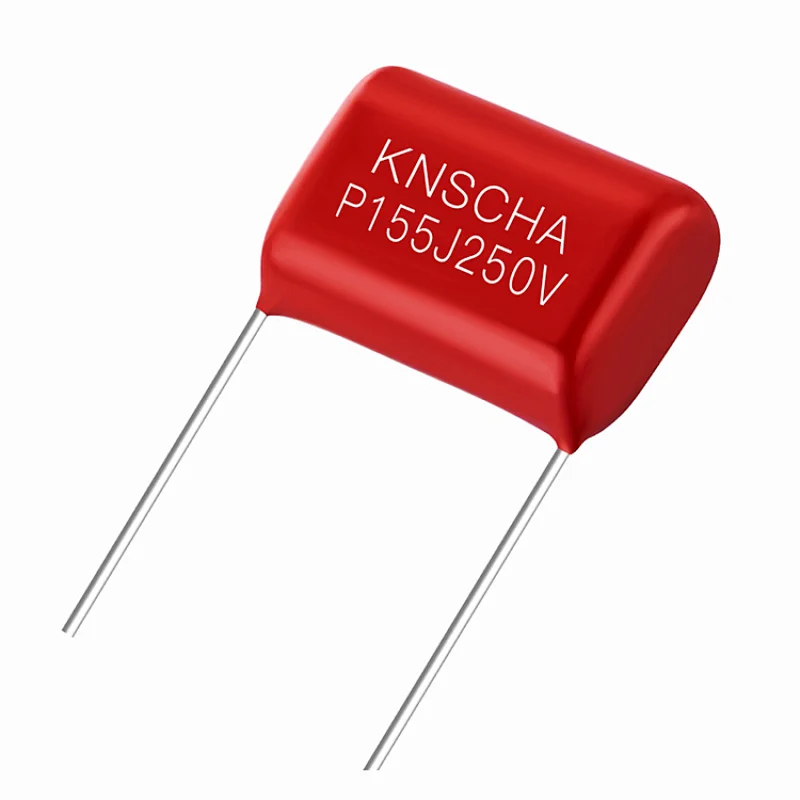

MPP/CBB22 Metallized Polypropylene Film Capacitor Dipped Type | ||
Climate Category | 40/105/21 | |
Flame Resistance Level | B | |
Working Temperature | -40℃~+105℃ | |
Rated Voltage | VDC | |
Capacitance Range | uF | |
Capacitance Tolerance | ±5% (J) | |
Withstand voltage | 1.6UR (Vdc)/(5s) | |
Dissipation Factor | ≤ 0.1% (1KHz, 20℃) | |
Marking | Size | Tolerance |
P | 15mm | ±0.5mm |
W | 18mm | ±0.5mm |
H | 12mm | ±0.5mm |
T | 6mm | ±0.5mm |
L | 22mm | ±2mm |
d | 0.6mm | ±0.05mm |
Features:
1. Excellent self-healing ability 2. Excellent temperature characteristic ability 3. Excellent flame resistance ability 4. Lower DF value and high insulation resistance
